Here are the instructions to install an oven overlay panel for frameless cabinetry.

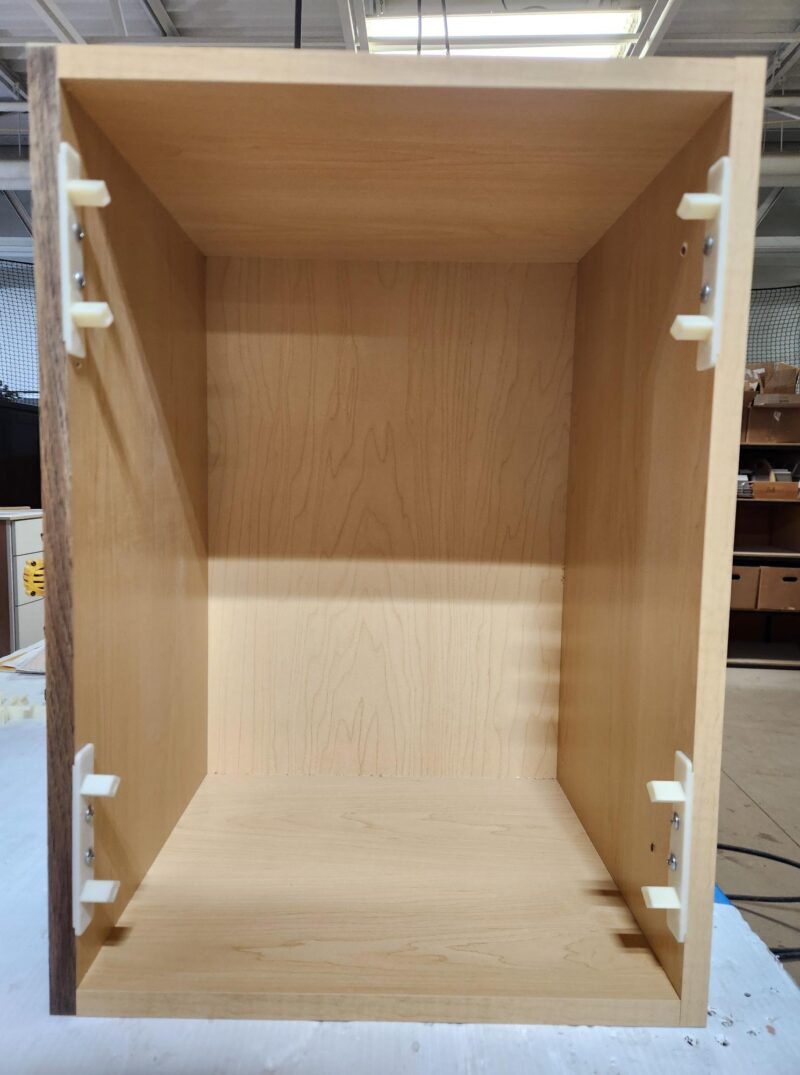

Attach “Male” Clip Side
Screw male side of clip to cabinet end panel with the lip hooked on to the outside of panel.
- Spacing doesn’t need to be exact; just relatively close to position

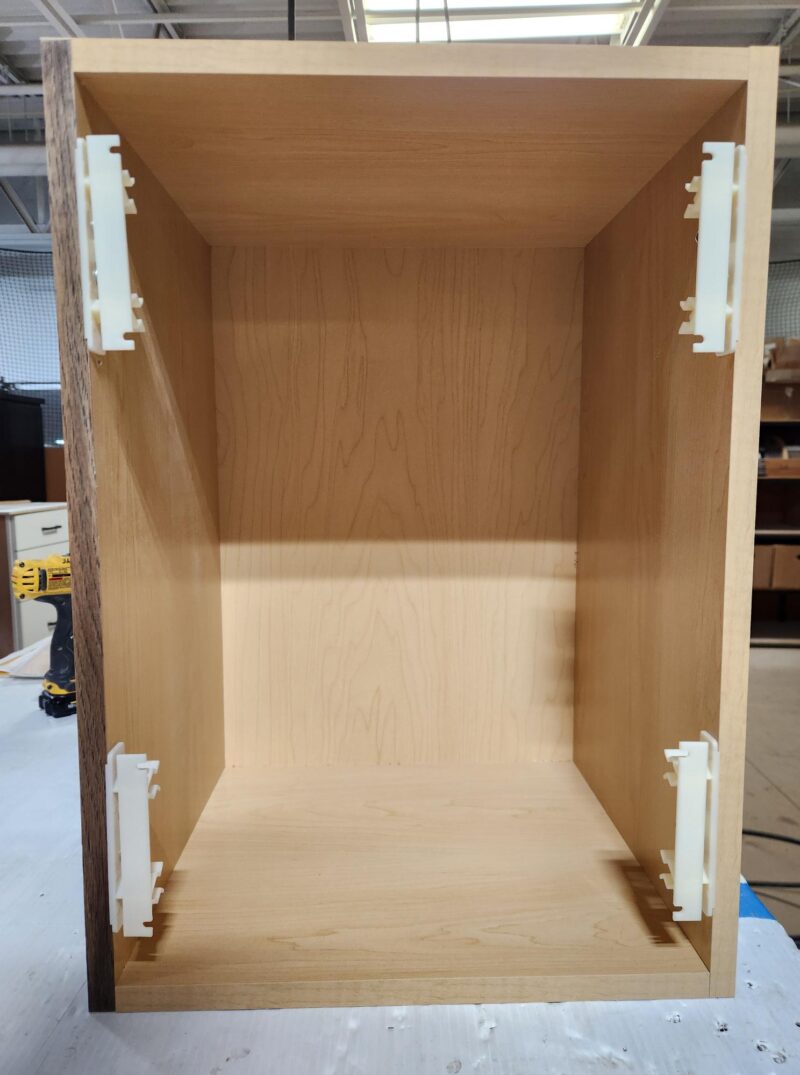

Attach “Female” Clip Side
Slide on female side of clip to male side with the screw holes toward the inside

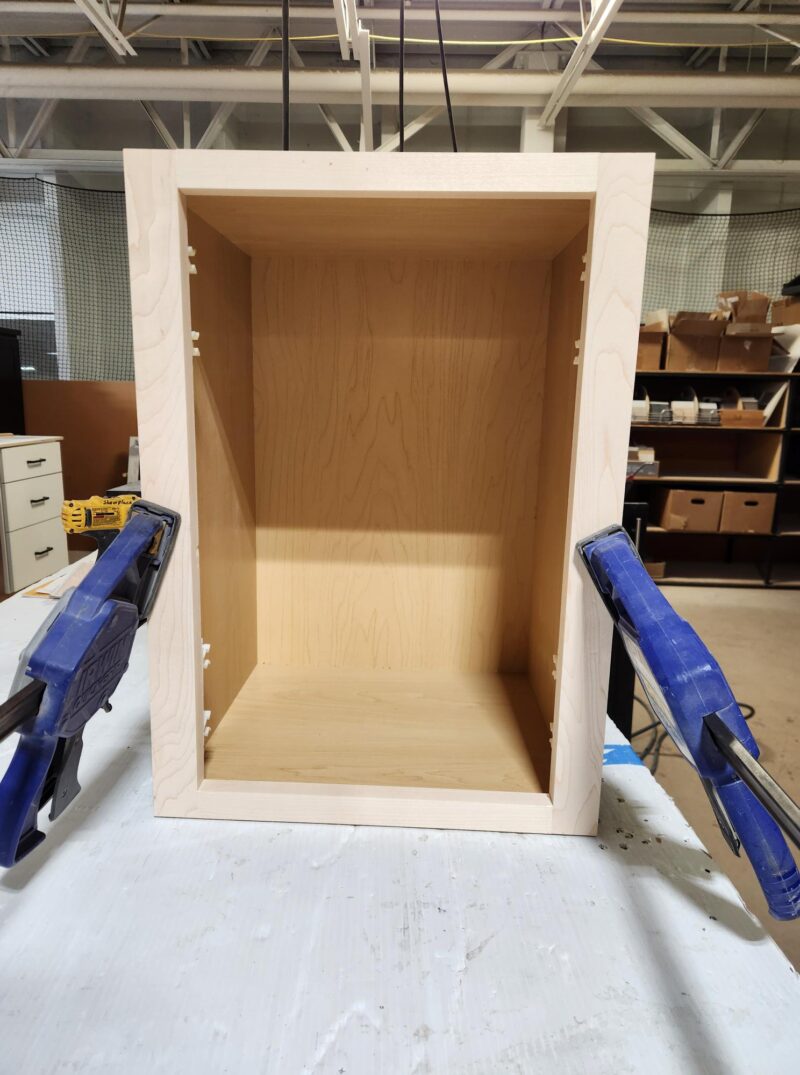

Attach Overlay Panel
Place OOP onto cabinet and position to get desired placement
- Use clamps or a helping hand to hold in place

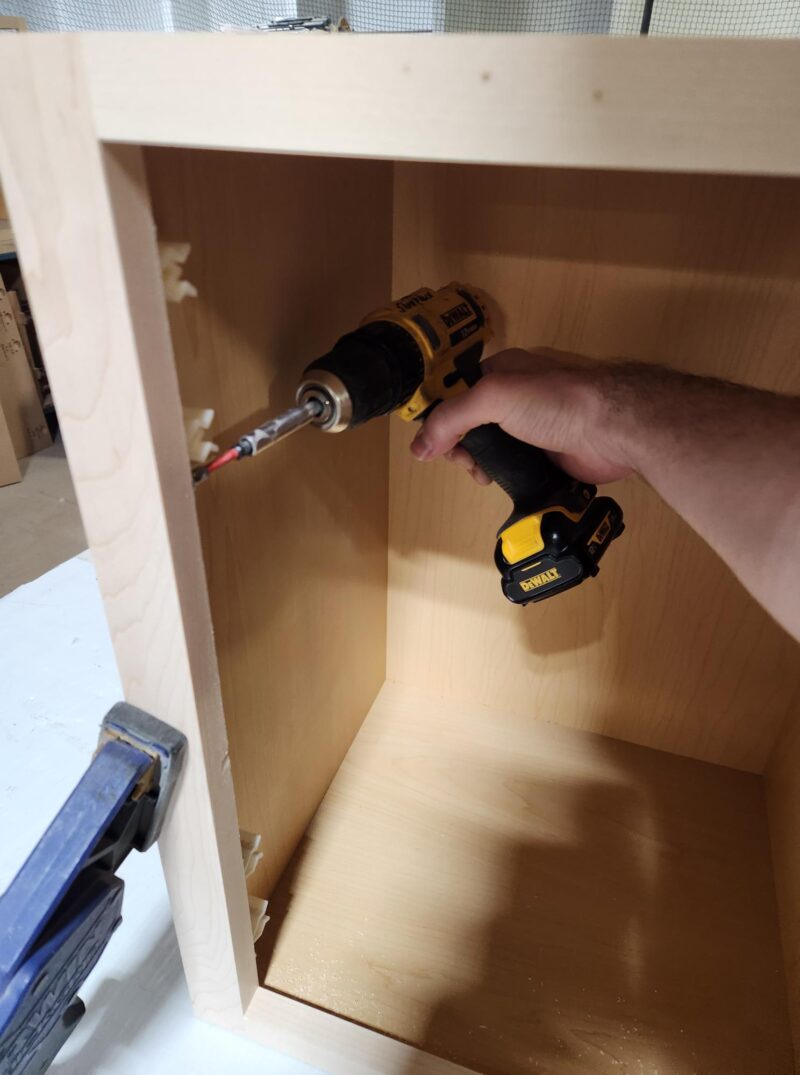

Screw Clip to Overlay Panel
Reach into cabinet and screw clip into OOP from behind
- Recommend predrilling hole to not crack frame

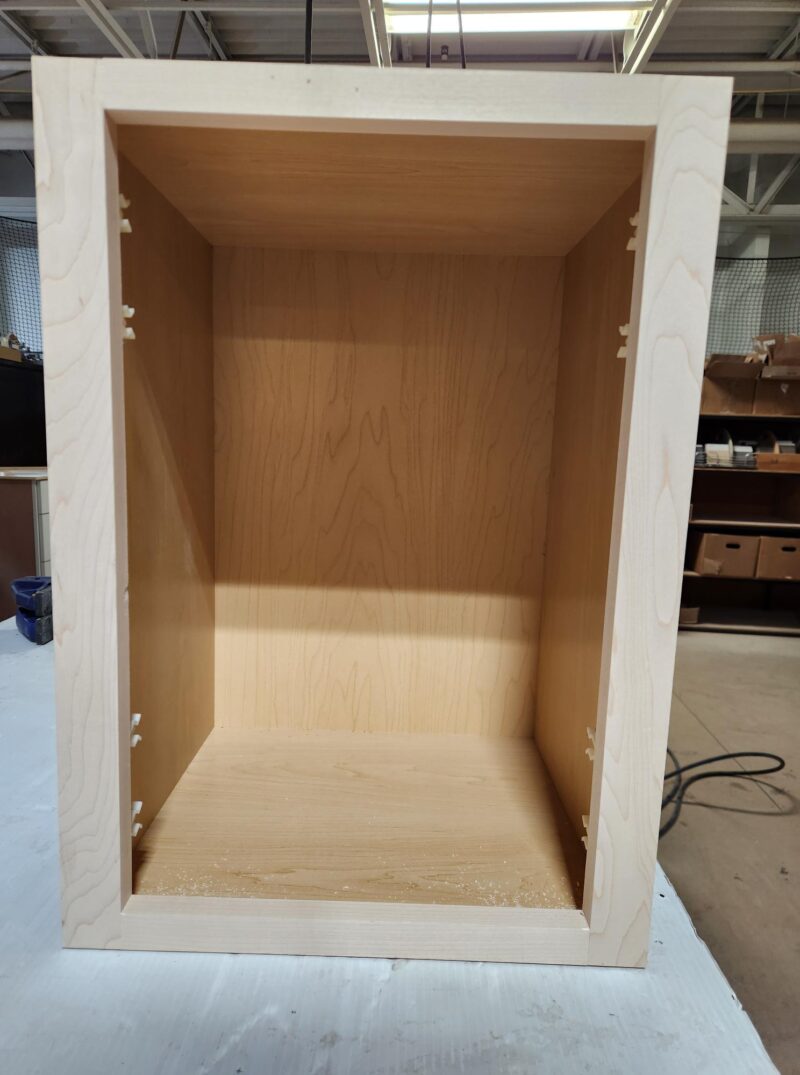

Remove Clamps
Remove clamps and you have completed the installation
